Safelite

Subway underpass lighting

  • ukca
  • ce
  • led
  • low energy
  • recyclable

In order to maintain safety in subway underpasses, there should be high quality lighting that keeps these areas well-lit at all times. At Simmonsigns, we have developed a range of quality subway lighting systems specifically to keep underpasses secure, any time of the day or night, and helping pedestrians to feel safe at all times.

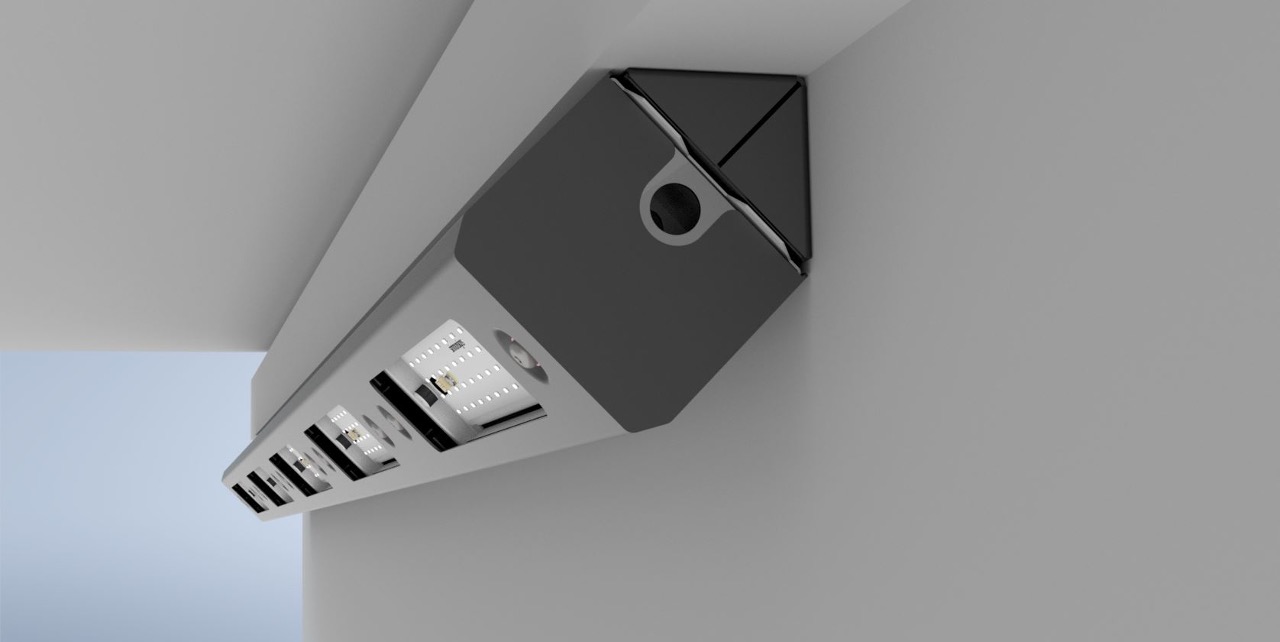

A stainless-steel luminaire for use in subways, on bridge walk-ways and in car parks, Safelite uses a simple linear styling in keeping with our product, Safe-Way.

Read more about our Safelite here.

More about the Safelite

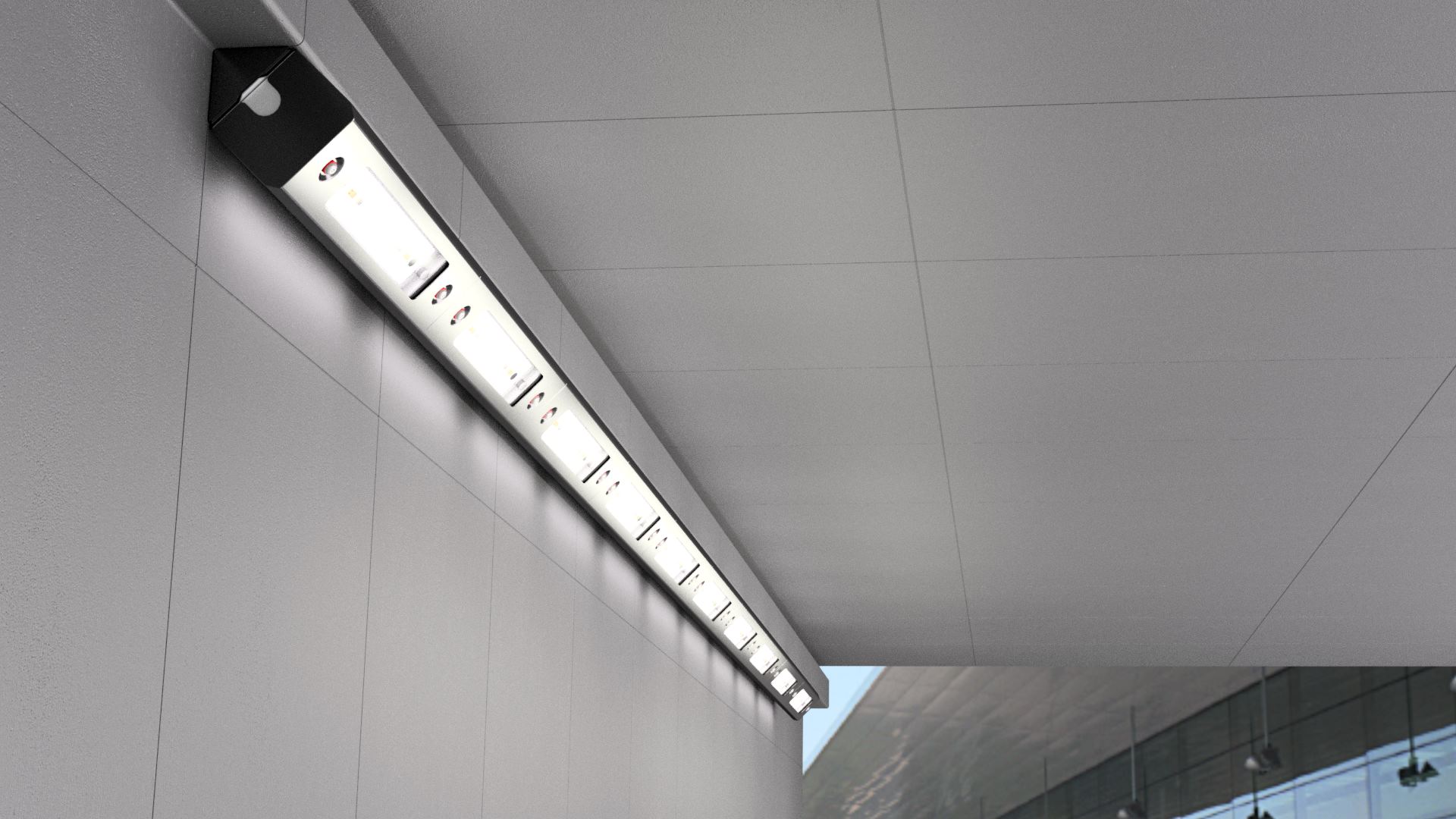

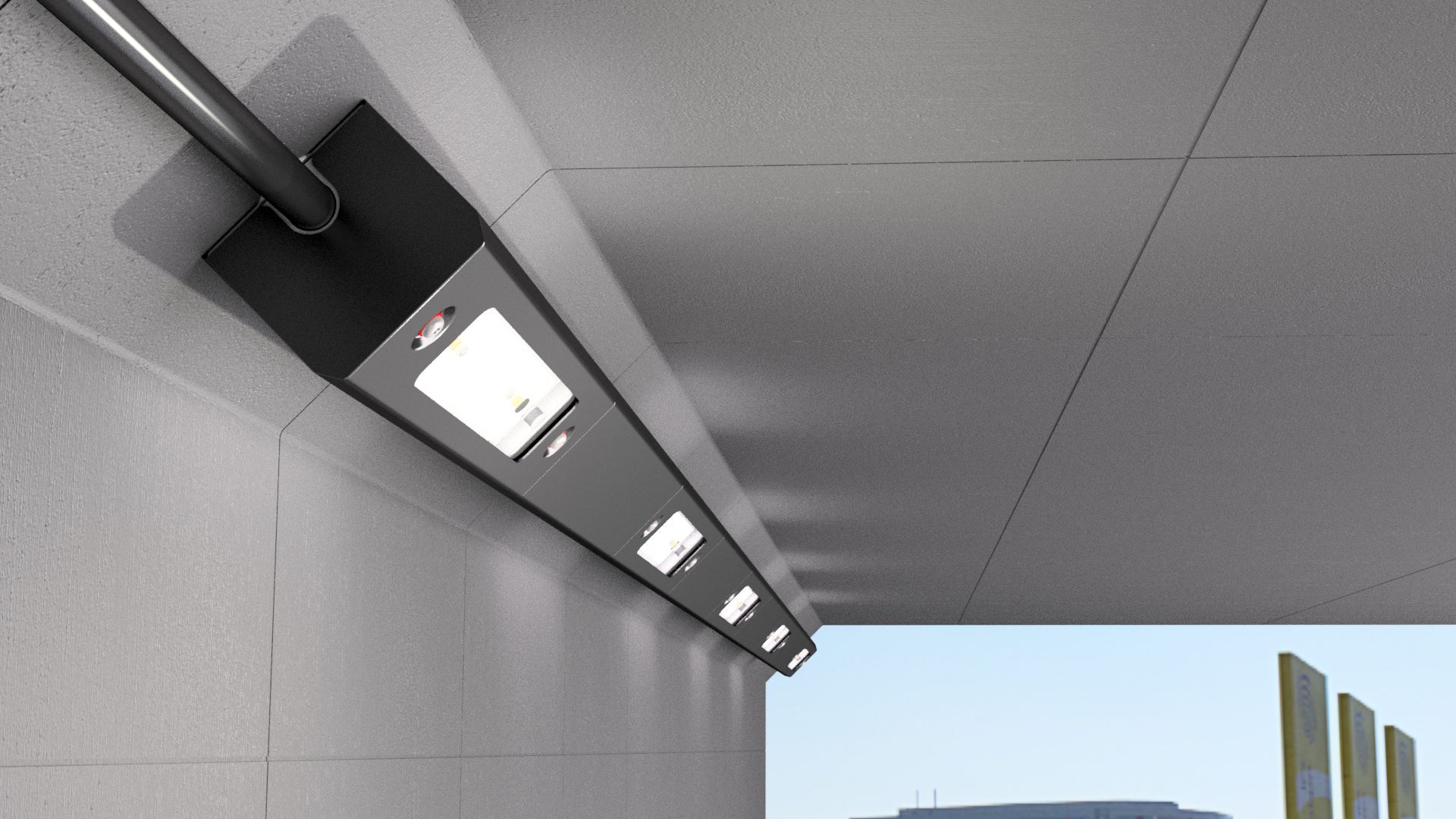

  • The unit can be run in continuous strips or with infills as shown

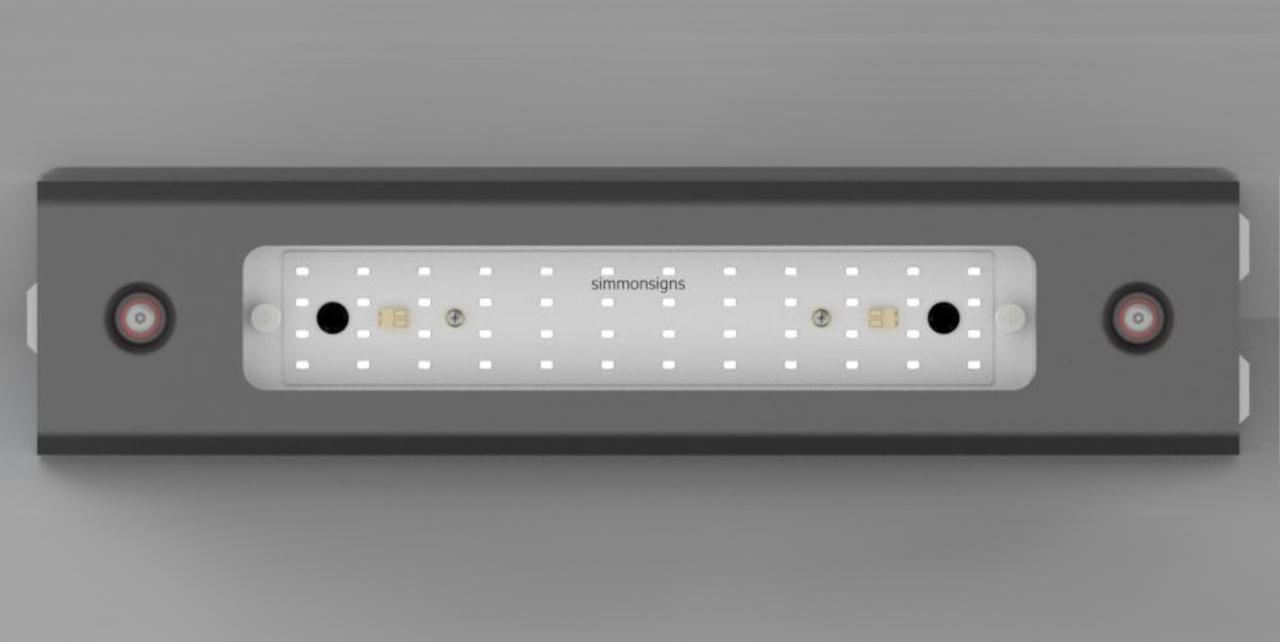

  • Evenly spaced luminaires shown on 1000mm centres, each with 48 LEDs

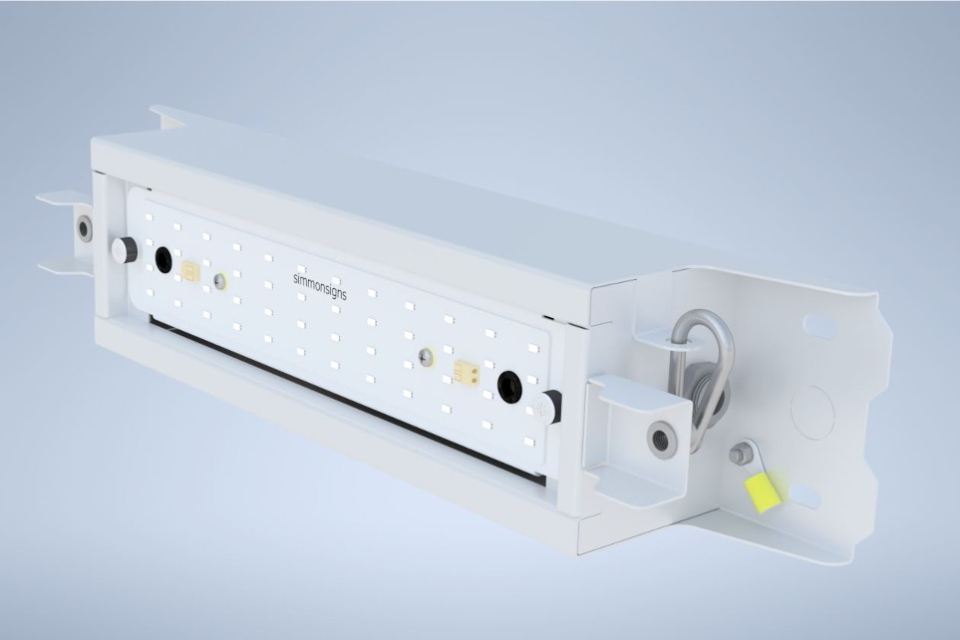

  • One luminaire has one array mounted to an aluminium fitting, easily removed using standard low profile M5 panel fasteners
  • Approx 50% power of Safe-Way (LEDs run at lower power)
  • Approx 50% light output of Safe-Way
  • Safelite is a 500mm long x 114mm wide x 99mm deep stainless-steel luminaire for use in subways, on bridge walk-ways and in car parks. It weighs 4.5Kg
  • Intended to be sold without a lighting design but we could supply photometric file for customers to do their own
  • It accepts 20mm or 25mm conduit fittings or for use with buried cables
  • It is designed to mount directly to wall, ceiling or cornice due to its slim profile

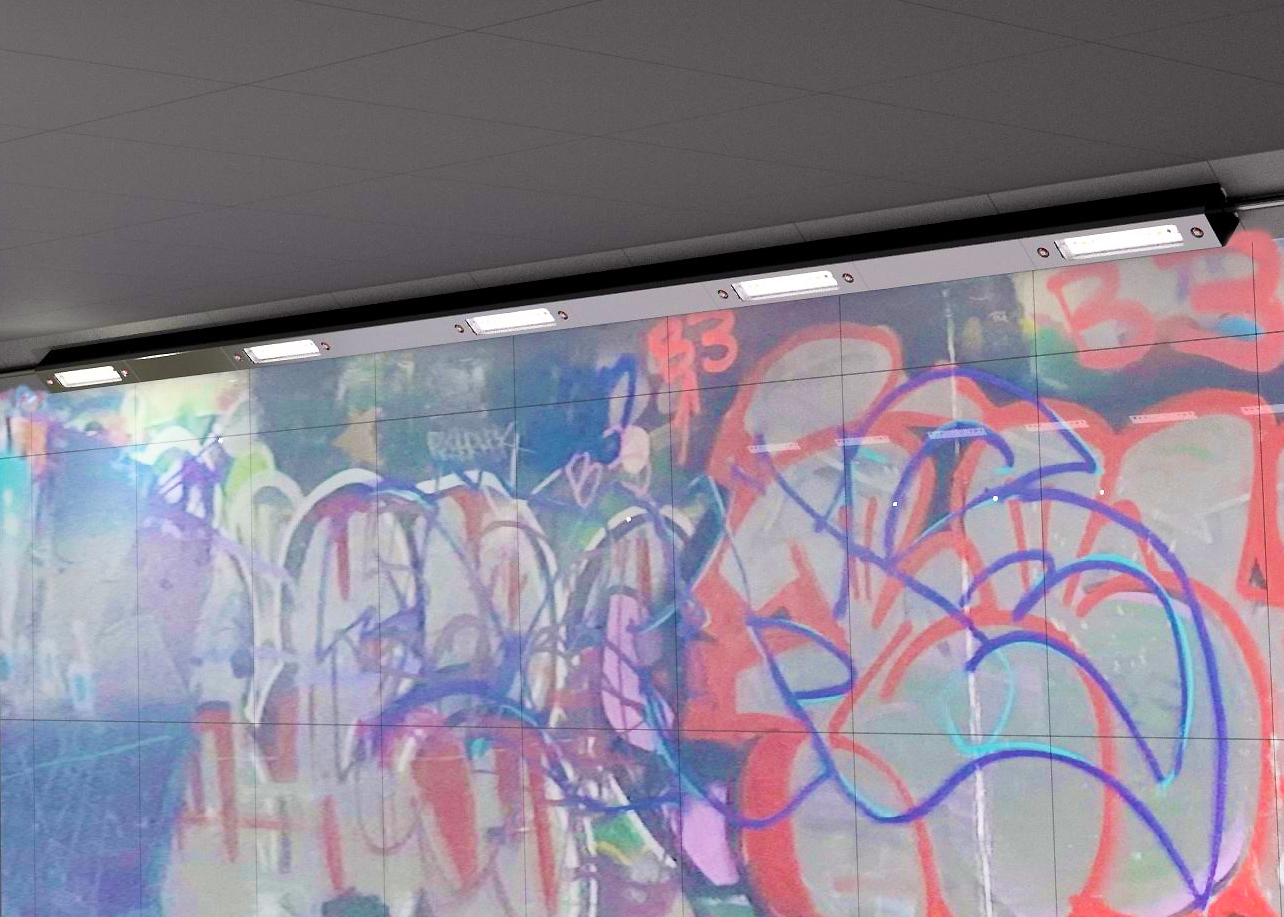

  • Optional dummy infills can be designed to allow fewer luminaires if desired
  • It has two buried security fixings to close the front and is IK10 (TBC) / IP65 (TBC) when closed
  • It has optional easily replaced windows - 5mm PC Clear | 3mm Stippled | 1mm Sacrificial

If you would like to find out more about our Safelite, please get in touch with our team by calling 01952 293333.

Benefits

safelite

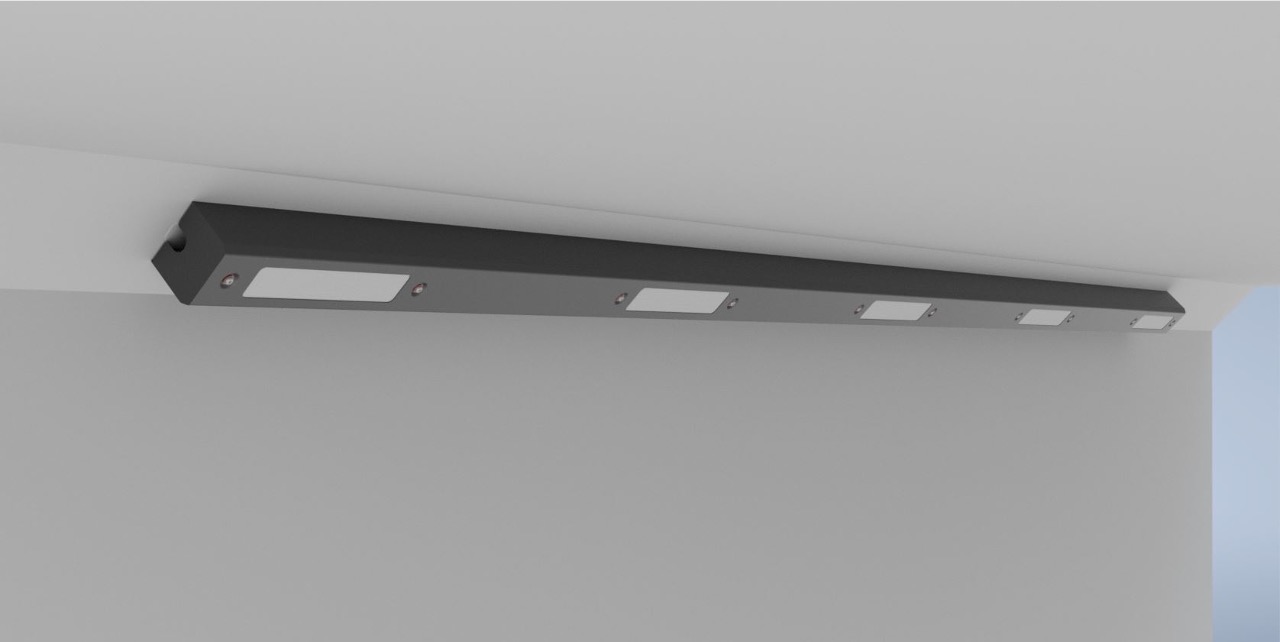

  • The unit can be run in continuous strips or with Infills.
  • Evenly spaced luminaires shown on 1000mm centres, each with 48 LEDs.
  • One luminaire has one array mounted to an aluminium fitting, easily removed using standard low profile M5 panel fasteners
  • Approx 50% power of Safeway (LEDs run at lower power)
  • Approx 50% Light Output of Safeway
safelite
  • Safelite is a 500mm long x 114mm wide x 99mm deep stainless-steel luminaire for use in Subways, on bridge walk-ways and in Car-Parks. It weighs 4.5Kg
  • Intended to be sold without a lighting design but we could supply photometric file for customers to do their own
  • It accepts 20mm or 25mm conduit fittings or for use with buried cables
  • It is designed to mount directly to wall, ceiling or cornice due to its slim profile
  • Optional dummy infills can be designed to allow fewer luminaires if desired
  • It has two buried security fixings to close the front and is IK10 (TBC) / IP65 (TBC) when closed
  • It has optional easily replaced windows 5mm PC Clear | 3mm Stippled | 1mm
safelite
  • Optional brackets (end cap and joining) allow for 45-degree fitting for non-standard subway profiles
  • Proposed polyester powder coated BLACK stainless-steel front
safelite

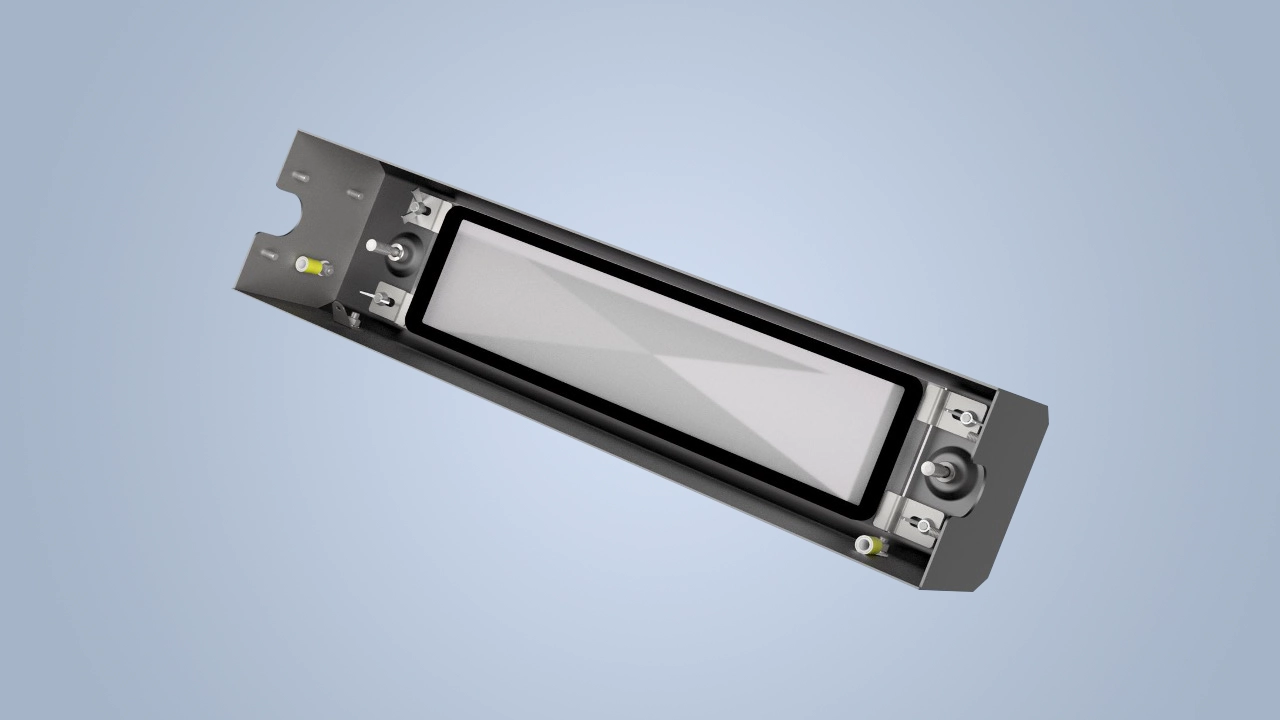

  • Key-way feature to assist alignment and spacing, obrounds for M8 fixings
  • 20mm glands for continuous wiring
  • Stop feature to stop gasket crushing
  • Knockouts for buried wiring applications

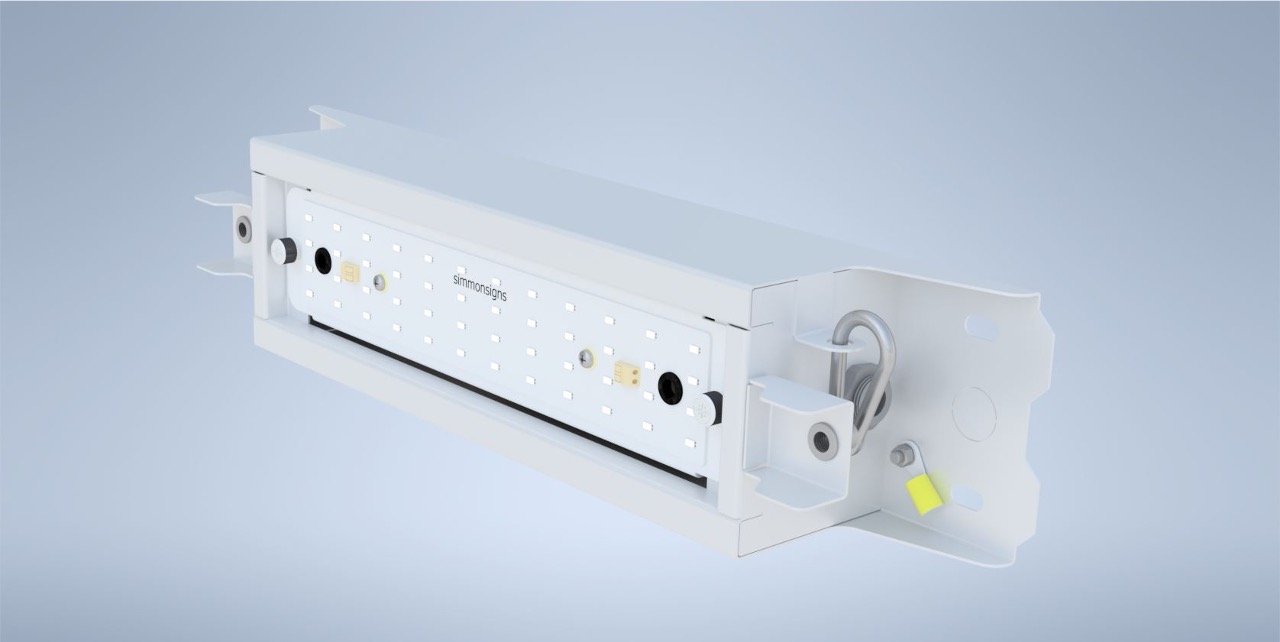

  • 1.2mm stainless steel rear enclosure (raw) with watertight welded main compartment
  • Snap hook with 200mm stainless-steel wire to front panel for retention
  • Longer earth lead between rear and front enclosure
